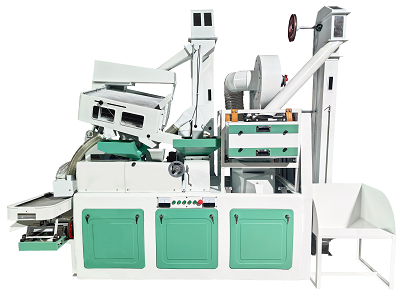

Eco combined rice milling machine



Description:

1.Holmer Combined Rice Mill is equipped with a number of high-efficiency components, including single/double elevators, de-stoner, pneumatic huller (optional), etc., as well as automatic rice husk separator, gravity separator, and negative-pressure low-temperature rice milling machine. These components are the result of 10 years of technology and represent the latest technology in the industry. In addition, the equipment is equipped with an automated control system that can be operated remotely from a cell phone(optional), greatly enhancing convenience and efficiency.
The Holmer Rice Mill is your ideal choice for efficiency, quality and safety, and is an indispensable piece of high-tech equipment for modern agriculture.



2.Holmer Combined Rice Mill Machine's exterior design is excellent, and its interior structure adopts  advanced automobile manufacturing technology. We use high-strength steel and adopt the gantry frame design. Accuracy and stability are ensured by CNC laser cutting machines, precision presses and robotic welding. The Rice Mill is unique.

Our advantages:
1、Easy to install, 80% of the components have been installed before leaving the factory. One person only needs 3 hours to complete the installation and start production, competitors need 2 people to spend 2 days to complete the installation.
2、Energy-efficient, the whole machine can be completed with 4 motors, the competitors need at least 8 motors, it is known that the higher the number of motors, the higher the failure rate.
3, the frame is welded as a whole, higher stability, longer service life, competitors are building block type bolt links
4、Saving space, 3MX1.5MX2.5M size, more than 15% smaller than competitors.
5、Elevator, de-dusting screen to increase the area, the use of oversized dustpan and discharge chute, less crushing and not blocking the material, competitors dustpan is small, the screen surface is small, the chute is small and easy to block.
6、Gearless huller, the use of triangular belt drive, low cost, fast shelling speed, competitors use gear box and synchronous belt drive, accessories are difficult to buy and the cost is high, low efficiency of shelling
7、Gravity separator adopts low frequency and small amplitude, high stability and longer service life.
8、Rice milling machine adopts diamond sand mixed with silicon carbide exclusive formula, after two sintering and become, milling white effect is good, the crushing rate is very low, competitors use single material sand roller, rice color is not white and high rate of broken rice.
9, the electronic control system to increase the overload intelligent protection system, so that the motor power is completely released is not easy to damage, competitors are the most common way to start, the protection function is not comprehensive enough!
10, the whole machine is highly integrated, the layout design is scientific and reasonable, with 40HQ can load 11 sets of equipment (maximum, excluding bran crusher). Reduce transportation costs.



Model

Rice production

capacity(kg/h)

(RPM)

Rotate speed

Power(kw)

With bran

crusher

Power input

(V/Hz)

Overall dim.

(mm)

Packing Dim.

(mm)

Net/Gross

weight

(kg)

6LN 20/15S-W

6LN 20/15Z-W

700-1000125030.85

380/50

3Phase

3000*2200*27002000*1100*20001200/1300
